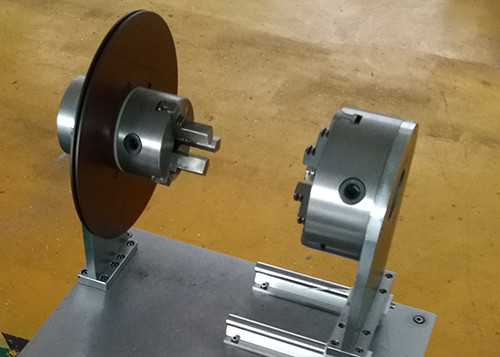

Screwed Gland Torque Resistance Strength Tester IEC60884 Clause 24.6

Parameters:

1. Cylindrical metal rod: Ф5, Ф7, Ф9, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф22, Ф25, Ф30, Ф32, Ф40mm, one each, 14 pc in all
2. Weights: 20N, 40N, 50N, 60N weight with hook, one each; 10N, 20N weight with hole, one each. Can meet the test requirements to most screwed glands.
3. Diameter of the disc: 250mm(500mm disc for option, with less weights)

Standard: IEC 60884-1 2013 clause 24.6, IEC 60598-1 clause 4.12.5

Application: This device is use for test the torque resistance strength of screwed gland of lamps and similar appliances.

Test sample: Screwed gland of lamps and similar appliances.

Feature: Floor type support, lifting weights mechanism drive turntable to achieve torque test.

Standard clause:

Screwed glands are fitted with a cylindrical metal rod having a diameter ,in millimetres,equal to the nearest whole number below below the internal diameter ,in millimetres ,of the packing .

The glands are then tightened by means of a suitable spanner ,the torque shown in table 22 being applied for 1 min .

Table 22-torque test values for glands

After the test ,the glands and the enclosures of the specimens shall show no damage within the meaning of this standard .
