    Ground Recessed Luminaires Led Testing Equipment

    Ask Lasest Price
    Brand Name : SHC
    Model Number : SC-GRE
    Certification : CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
    Price : USD 1000-5000 piece
    Payment Terms : T/T, Western Union, MoneyGram, D/A
    Supply Ability : 999 units per month
    Delivery Time : in 15 work days
    • Product Details
    • Company Profile

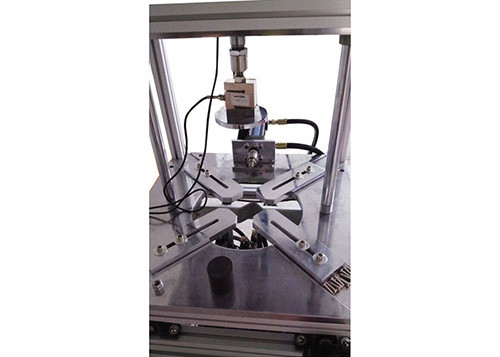

    Ground Recessed Luminaires Led Testing Equipment

    IEC60598-2-13 Ground Recessed Luminaires Light Testing Equipment ​


    Main technical parameters:

    Power supply380V 50Hz
    Test objectground accessed luminaires
    Teststatic load test and torque test
    Max. load20KN
    Rubber punchdiameter 50mm, thickness 50mm
    Maintain time5-10s for torque test, 1min for static load test
    Station1 station
    StandardIEC 60598-2-13 Clause 13.6.1, 13.6.2
    ControlMitsubishi PLC
    DisplayTouch screen

    Production introduction:

    This test equipment conforms to IEC 60598-2-13 clause 13.6.1 and clause 13.6.2 standard requirements.

    It is used for the ground accessed luminaires static load test and torque test.

    This equipment is controlled by PLC electrical system, the whole operation is controlled on the touch screen, all the parameters can be preset on the touch screen, include every selection mode of the kettle, the touch screen with the functions of manual operation, automatic operation and real-time display.


    IEC 60598-2-13

    13.6.1 Resistance to static load

    Luminaires shall withstand the minimum static load according to the manufacturer's instruction.


    13.6.2 Resistance too torque and shear loads
    Luminaires designed to be used in areas where motor vehicles may circulate, carriageways, parking areas, etc.

    shall withstand the forces exerted by a turning, breaking or accelerating tire.

    Test details please reference to standard discription.

    Ground Recessed Luminaires Led Testing Equipment
