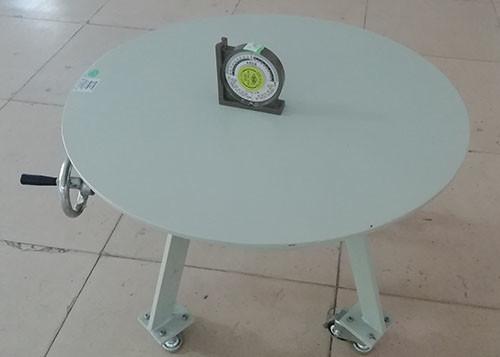

IEC60335 Clause 20.1 1000mm Inclined Plane Device

IEC60335 Clause 20.1 Electrical Appliances Inclined Plane Safety Tester

Product details:
To determine the stability of electric appliances which are used on a table or on the floor, in accordance with IEC60065 clause 19.1, IEC60335-1 clause 20.1, IEC60601-1 clause 24.1, IEC 60950 clause 4.1. 1, IEC60065 clause 19.1. The device consists of a surface and a threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30° Against the horizontal.

Parameters:

Model	Surface Diameter	Surface Material	Angle Range	Load Capacity	Rotation Method	Rotation Speed	Remark
SC-IPT-06	600mm	High-quality spray steel plate	0-30°	50kg	Manual/ Electrical	1r/min	Round table
SC-IPT-08	800mm	High-quality spray steel plate	0-30°	80kg	Manual / Electrical	1r/min	Round table
SC-IPT-10	1000mm	High-quality spray steel plate	0-30°	120kg	Manual / Electrical	1r/min	Round table
SC-IPT-08B	800*800mm	Aluminum plate	0-15°	80kg	Manual	-	Rectangle table
Z represents the version with automatic rotation function driven by the electrical motor

Standard Outfit:
1 table board, with supporting frame,
1 base plate with hinges for the supporting frame and for the spindle bearing,
1 threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30° Against the
horizontal,
1 inclination angle measuring instrument, to mount at the table board, for checking the angle of inclination of the table board,

Model:

Table diameter: 600 800 800 1000 mm

Rotation mode Manual control Manual control Electric model Manual control Electric model

Rotation speed 1 rpm 1 rpm

Inclination angle 0~30±1° 0~30±1° 0~30±1° 0~30±1° 0~30±1°

Permissible load Less than 50kgs Less than 80kgs Less than 80kgs Less than 120kgs Less than 120kgs

Main features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Running in a high automatization and intellectualization,no pollution
