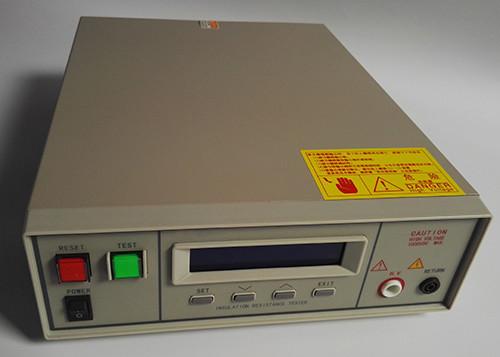

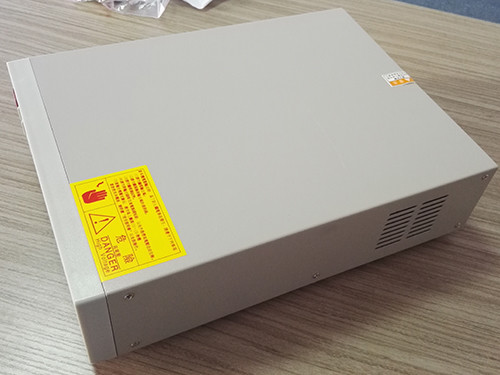

    500V Electrical Appliance Tester , IEC60065 Insulation Resistance Tester

    Ask Lasest Price
    Brand Name : Shice
    Model Number : SC-IRT
    Certification : CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
    Price : USD 500-6000 piece
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 999 pieces per month
    Delivery Time : in 15 working days
    • Product Details
    • Company Profile

    500V Electrical Appliance Tester , IEC60065 Insulation Resistance Tester

    IEC60065 Insulation Resistance Tester Test Range From 100kΩ To 5TΩ


    Standard:

    Confirm to IEC60065:214 clause 10.4, IEC60950, IEC60598, IEC60335-1


    Application area:

    Household Electric Appliances: TV, refrigerator, air conditioner, washing machine, dryer, electric blanket, charger etc.

    Insulation material: heat shrinkable tube, capacitor film, high pressure tube, insulating paper, insulated shoes, rubber insulating gloves, PCB circuit board etc.

    Instruments and meters: oscilloscope, signal generator, DC power supply, switching power supply and other types of machine.

    Lighting appliances: ballast, road lights, stage lights, portable lamps and other types of lamps.

    Electric heating appliances: electric drill, pistol drill, cutting machine, grinding machine, electric welding machine etc.

    Wire and cable: high voltage cable, optical cable, electric cable, silicone rubber cable, etc.

    Motor: Rotating electrical machines, etc.

    Office equipment: Computer, Currency Detector, printer, copier, etc.


    Parameters:

    ModelRK2681RK2681ARK2682
    Test range100kΩ-5TΩ100kΩ-10TΩ500kΩ-2GΩ
    Test accuracy

    R<10GΩ ±3% indication ±0.5 lattice

    R≥10GΩ ±5% indication±0.5 lattice

    R≥1TΩ ±10% indication ±0.5 lattice

    ±5%+2 words
    Test voltage(V)10/25/50/100 /250 /50010/50/100/250/500 /1000500 /1000
    Voltage accuracy±2%
    Control methodAnalog circuitDigital circuit
    Range methodManual operation
    Measuring velocityResistive element:<0.5 seconds, Capacitive element: 0.5~10 seconds
    SortingQualified, unqualified, unqualified hearing ring (can be switched)
    Work environment10℃~40℃≤85%RH
    Power supply220V±10%,50Hz/60Hz±5%
    Exterior dimension380×365×135mm310×270×110mm
    Weight6kg4.5kg
    AccessoryPower line, test line

    Performance characteristics:

    Easy to operate, reliable performance

    With steady voltage automatically function

    With undesirable discriminant function

    Fast test speed, good stability, easy to operate


    Product introduction:

    RK2681 series insulation resistance tester is a kind of insulation performance measuring instrument of household appliances, lighting appliances, electric heating appliances, electronic components, dielectric materials, the whole machine and so on. Fast test speed, good stability, convenient operation, and has discriminated function.

    The insulation resistance tester of RK2682 type design according to the IEC,BS,UL and other international and domestic requirements of the safety standard, testing is divided into DC500V and DC1000V two files. The insulation resistance is divided into 0.5MΩ~2000MΩ four files (2MΩ,20MΩ,20MΩ,2000MΩ).The instrument is based on absorbing and digesting the international advanced insulation resistance testing instrument and combined with the actual use of many users in our country to improve and refine. We pay more attention to the performance and quality in the price/performance. In terms of price, we pay more attention to the actual purchasing power of many users. It belongs to the lowest price of the product in the domestic same file type.
