20KN Cable Testing Equipment , Tensile Testing Machine

Ask Lasest Price
Brand Name :	SHC
Model Number :	SC-CTS
Certification :	CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Price :	USD 1000-10000 unit
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	99 units per month
Delivery Time :	in 15 working days

Add to Cart

Product Details
Company Profile

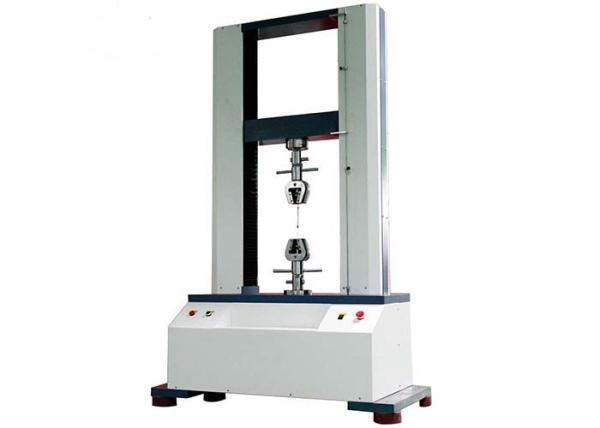

20KN Cable Testing Equipment , Tensile Testing Machine

Cable Tester Tensile And Elongation Strength Measuring Equipment

Application:

This device is suitable for all kinds of food packaging, textile, rubber, plastic, synthetic leather, tape, electronics, metal and other industries, such as materials and products to do tensile, peeling, tearing and other tests to determine the quality of the product. The machine adopts electromechanical integration design, mainly composed of force sensor, transmitter, microprocessor, load driving mechanism and computer. The precision is high and the operation is simple.

Parameters:

Capacity	2000KG
Precision grade	level 0.1
The maximum load of the beam	20KN
The effective measurement range	0.02/100-100%
The resolution of the test force, the internal and external files, and the whole resolution unchanged.
The effective test width	390mm
The station itinerary	1000mm
The speed of test	10~500mm/min
Speed precision	less than 0.1% of the indication value
The precision of displacement measurement	less than 0.1% of the indication
The precision of deformation measurement	within 0.1% of the indication value
Acquisition induction mode	high precision sensor
Control system	full digital AC servo controller
Tooling and fixture configuration	total two sets, one set for rubber and plastic materials, the other set for electrical cables and wires
Software measurement and control system	all digital closed loop control system, which can realize constant stress, constant strain, constant displacement and test function.
test bench lifting device	computer numerical control
test bench safety protection device	software automatic diagnosis, electronic limit
Test regression	manual can return to the initial position at the highest speed and automatically return automatically after the test.
Overload protection	the maximum load can be set, and automatic protection.
Host computer	special monitoring and control software, computer hardware using Lenovo brand business computer.
motor	2KW
The weight of the host	about 145kg

Configuration:

Material: the machine cover, all aluminum profiles are opened without any solder joints, and the shell is smooth and smooth, durable.

Motor: servo motor + servo drive;

Transmission: T type ball screw rod + light rod linear bearing;

Displacement: servo drive integrated light speed encoder.

Accessory:

1 tool box suitable for stripping of cables.

A computer

Software
