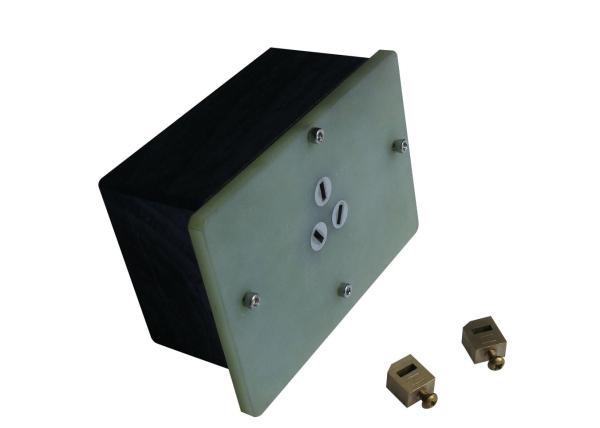

Mounting Of Plug And Pin Clamping Unit For Temperature Rise Tester

Australian and New Zealand gauge list:

Application

The design and construction of a plug provided with earthing connections shall be such that
when the plug is correctly wired and completely assembled-
(a) loose terminal screw or conductive material cannot bridge any live parts or earthing
parts;
(b) the earthing parts are effectively isnlated m contact with a live conductor that may
become detached: and
(c) the live parts are effectively isolated from contact with any earthing conductor that
may become detached.
Any connections for auxiliary devices such as radio interference suppressors or visual
indicators, shall comply with the above requirements.
2.10 ARRANGEMENT OF EARTHING CONNECTIONS
The earthing pin of any low voltage three-pin plug shall be that pin which is radial to the
circle embracing the pins (see Figure 2. 1(a), Figure 2.(f) and Figure 2.(g).

ConformsTo

AS/NZS 3112 Figure 2.9 and Figure 2.10

Ordering Information

Test apparatus for pin temperature test AS/NZS 3112
