E27 Lamp Cap Gauge Go No Go Thread Gauge Torque Gauge IEC60061 - 3

Gauge list:

Product Details:
Gauge Type: E27 Lamp Cap Gauge
Reference Standard: IEC60061-3

Model Number:

7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
7006-28A-1 Not Go Gauge for E27 Caps on Finished Lamps

7006-27C-1 Go Gauge for Dimension “S1” of E27 Caps on Finished Lamps
7006-50-1 GAUGE FOR FINISHED LAMPS FITTED WITH E27 CAPS FOR TESTING CONTACT MAKING

7006-51A-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact during insertion
7006-51-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact

Gauge Instructions:
1.7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
Purpose: To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps shown on sheet 7004-21
Testing: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with,or project beyond,surface X.

2.7006-27C-1 Go Gauge for Dimension “S1” of E27 Caps on Finished Lamps
Purpose: To check the dimension S1 minimum and S1 maximum of E27 caps on finished lamps shown on sheet 7004-21
Testing:
Testing: When the cap on a finished lamp has been pushed into the gauge as far as it will go ,the plunger surface “W” shall be co-planar with or project beyond surface “X” but it shall not project beyond surface “Y”

3.7006-50-1
GAUGE FOR FINISHED LAMPS FITTED WITH E27 CAPS FOR TESTING CONTACT MAKING
Purpose : To check lamp dimensions for contact making in I.E.C. holders
Testing: The shape of the lamp with regard to the fit in the lampholder is assumed be correct , if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it

4. 7006-28A-1 Not Go Gauge for E27 Caps on Finished Lamps
PURPOSE:To check the minimum outside(major) diameter of the screw thread , dimension “d”,of E27 caps on finished lamps shown on sheet 7004-21
TESTING:When the gauge is placed over the thread of the cap on a finished lamp,held cap uppermost ,the centre contact shall not project beyond surface “X” ,Only the weight of the gauge itself shall be used in the best.

5. (7006-51A-2)
E27 Gauge for caps on finished lamps for testing protection against accidental contact during insertion
Purpose : To check protection against accidental contact during insertion of caps E27 on finished lamps
Testing : The shape of the lamp with regard to protection against accidental contact is assumed to be correct if , when the lamp is pushed as far as possible into the gauge , surface W does not protrude beyond surface V

6.7006-51-2
E27 Gauge for caps on finished lamps for testing protection against accidental contact
Purpose : To check protection against accidental contact of caps E27/51X39 on finished lamps
Testing : The shape of the lamp with regard to protection against accidental contact is assumed to be correct if , when the lamp is pushed as far as possible into the gauge , surface W does not protrude beyond surface V

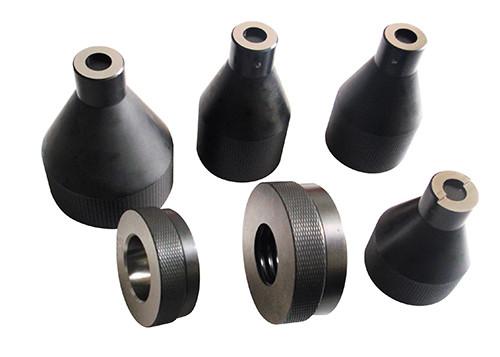

Gauge for E27 As follows
7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
7006-28A-1 Not Go Gauge for E27 Caps on Finished Lamps
7006-27C-1 Go Gauge for Dimension “S1” of E27 Caps on Finished Lamps
7006-50-1 GAUGE FOR FINISHED LAMPS FITTED WITH E27 CAPS FOR TESTING CONTACT MAKING
7006-51A-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact during insertion
7006-51-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact
