IEC60529 IP4X IEC61320 Figure 4 IP test finger probe Test rod probe D with force

IP4X Test Rod Probe D SC-F4D-F:

This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4

and IEC60065. This rod probe is intended to verify the protection of persons against access to hazardous

parts. It is also used to verify the protection against access with a wire.

Customizable:

It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure

protection test when open threaded hole of M6 at the end of the handle (connected with pull and push

dynamometer) .The probe whose model number is with "T" is with force.

Parameters:

Other IP test probes

These probes conforms to IEC60529 for IP1X IP2X IP3X

Specification and technical parameters:

I) IP1X Test sphere probe SC-F1A-F

It conforms to the standard requirements of IEC61032 fig.1, IEC60529 IP1 and IEC60065.

This probe is intended to verify protection the back of hand of persons against access to hazardous parts.

It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol

connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle

(connected with pull and push dynamometer) .

The probe whose model number is with "T" is with force.

II)IP2X Test Finger Probe B SC-F2B-F

This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC60950

figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic

protection against access to hazardous parts. It is also used to verify the protection against access with a

finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics

of the human hand. It has two movable joints, which can be curved at 90°.

Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and

amphenol connector at the end of the handle , or used for enclosure protection test when open threaded

hole of M6 at the end of the handle (connected with pull and push dynamometer).

Main specification and corresponding technical parameters:

III) IP3X Test Rod Probe C SC-F3C-F

This probe conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3 and IEC60065.

This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to

verify the protection against access with a tool.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for

enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push

dynamometer) .

The probe whose model number is with "T" is with force.

Parameters /Model	SC-F3C-F
Name	Test rod probe C with force
1	Ф2.5+0.05 0
2	SФ35±0.2
3	Ф10
4	100±0.2
5	----

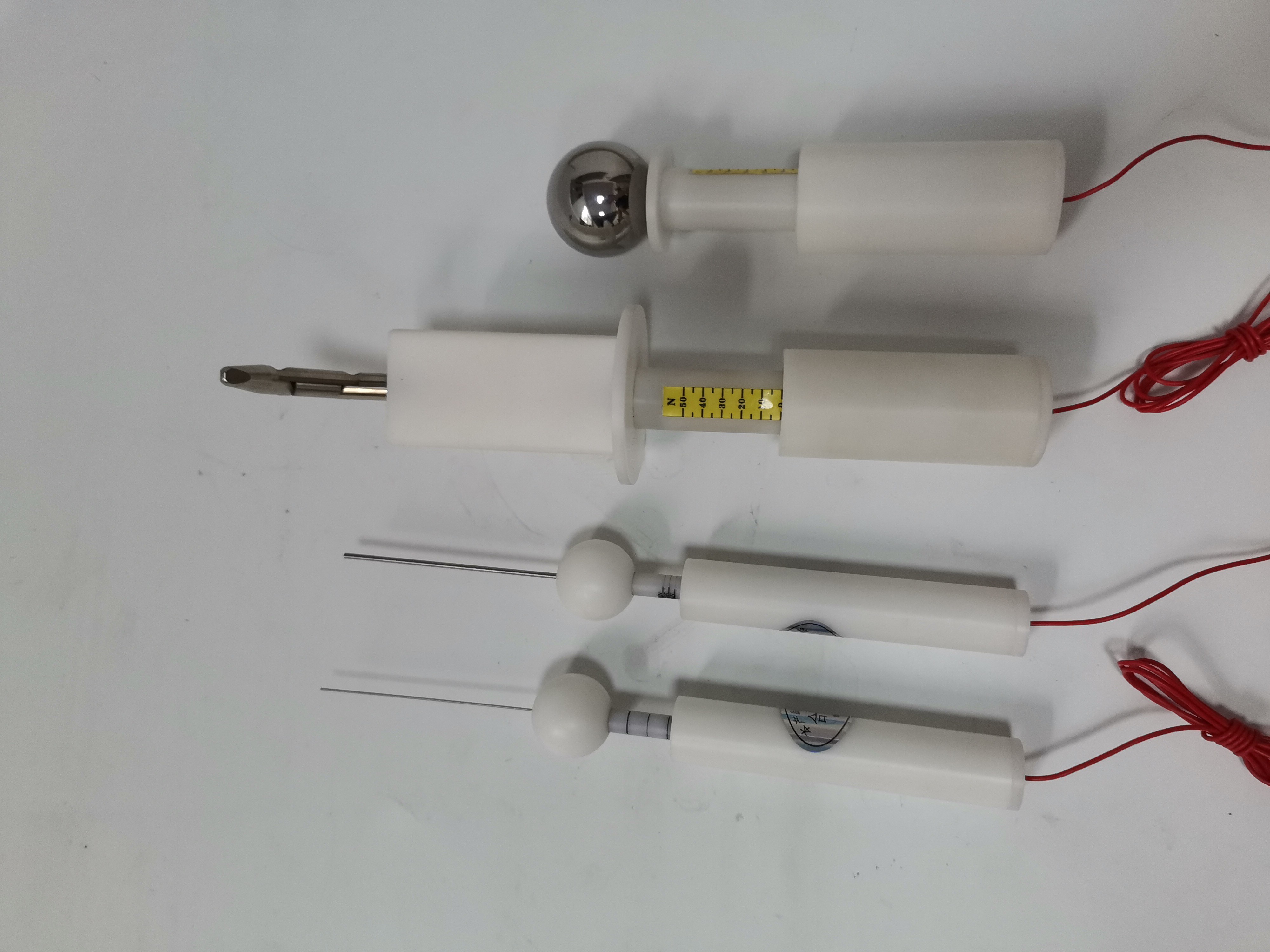

IP1X, IP2X, IP3X, IP4X pictures:

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.

Our main products are:

waterproof and dustproof (IP) environmental test equipment;

switch, plug, socket and coupler test equipment; mechanical strength impact test equipment;

material fire hazard test equipment, enclosure protection test probes;

household appliances safety test equipment;

wire and cable test equipment;

luminaires test equipment;

electric tools test equipment.

Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
