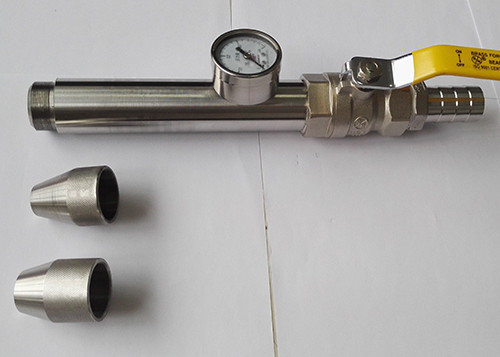

IEC60529 IPX5 IPX6 Handheld Water Jet Nozzles IP Test Equipment

Product information:

The jet nozzle is designed and manufactured in accordance with IEC60529 clause IPX5 and IPX6.

It is used for the waterproof test of the electric appliance.

Test for second charateristic numeral 5 with the 6.3 mm nozzle
The test is made by spraying the enclosure from all practicable directions with a stream of water from a standard test nozzle as shown in figure 6.
The conditions to be observed are as follows:
Internal diameter of the nozzle:6.3 mm;
Delivery rate:12.5 L/min±5%;
Water pressure: to be adjusted achieve the specified delivery rate;
Core of the substantial stream: circle of approximately 40 mm diameter at 2.5 m distance from nozzle;
Test duration per square metre of enclosure surface area likely to be sprayed:1 min;
Minimum test duration: 3 min;
Distance from nozzle to enclosure surface: between 2.5 m and 3 m.

Test for second characteristic numeral 6 with the 12.5 mm nozzle
The test is made by spraying the enclosure from all practicable directions with a stream of water from a standard test nozzle as shown in figure 6.
The conditions to be observed are as follows:
Internal diameter of the nozzle:12.5 mm;
Delivery rate: 100 I/min ±5%;
Water pressure: to be adjusted to achieve the specified delivery rate；
Core of the substantial stream: circle of approximately 120 mm diameter at 2.5 m distance from nozzle;
Test duration per square metre of enclosure surface area likely to be sprayed: 1 min;
Minimum test duration: 3 min;
Distance from nozzle to enclosure surface: between 2.5 m and 3 m.

Technical parameters:

Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653

IP Code of the IPX5 and IPX6

SC-IPX waterproof test machine is according to IEC60529:1989 +A1:1999+A2:2013 (Degrees of protection provided by enclosures (IP
Code)>,IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1.The SC-IPX includes the following test grades: IPX1, IPX2,IPX3,IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the
products such as electrical and electronic products, LED luminaires as well as in the relevant quality control department for the
waterproof detection of the enclosures protection grades.

The whole SC-IPX waterproof test system includes:

Drip Box(SC-IPX12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm(LXWXH). The diameter of drip hole
is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.

Swing Pipe Water Spray Test Equipment (SC-IPX34): It is for IPX3 and IPX4 test. The semi-diameter of swing pipe is 1meter(Any
other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other
size according to the diameter of the swing pipe, and the height is adjustable. The rotation speed is 1-5rpm which controlled by PLC
panel.

Waterproof Jet Test Device (SC-IPX56): With water supply device size is 1000x1000x600m, the nozzle diameter is 6.3mm (IPX5)
and 12.5mm(IPX6). The water speed is 12.5±0.626L/min for IPX5 and 100±5L/min for IPX6.

Immersion tank Waterproof test Device (SC-IPX7): It Is for IPX7 test. The water tank size is 1000x1000x1200mm (Other size can be
designed according to your request). It can test samples up to 120kg

Immersion tank Waterproof test Device(SC-IPX8): It is for IPX8 test. It can simulate a water depth of 0-50m. The water immersion
tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer's
request.
