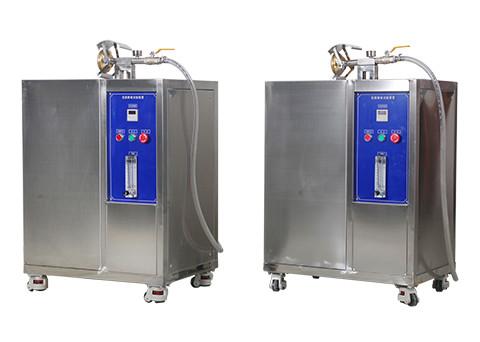

IPX3 IPX4 Handfree Spray Nozzle Ingress Protection Test Equipment
Technical parameters:
| No. | Item | parameter |
| 1 | Water supply | Water flow rate is 50～150kpa clean water without inclusion. |
| 2 | Spray nozzle parameters | external diameter: Ф102mM spherical diameter: SФ75.5mm There is a middle hole and There are 24 holes in the internal
circle of holes of which the included angle is 30°. There are 96
holes in the external circle of holes of which the included angle
is 15°. 121 holes in total. The hole diameter: Ф0.5mm It is made of brass. |
| 3 | Water flow | 10L/min±5%,Flow meter is adjustable |
| 4 | Range of pressure gauge | 0～0.4Mpa |
| 5 | Baffle | removable |
| 6 | Pressure gauge | 0~0.25MPa |
| 7 | Site requirements | Dedicated IP waterproof test room,The ground should be flat with
illumination With good function of inflow and drainage. |
Instrument:

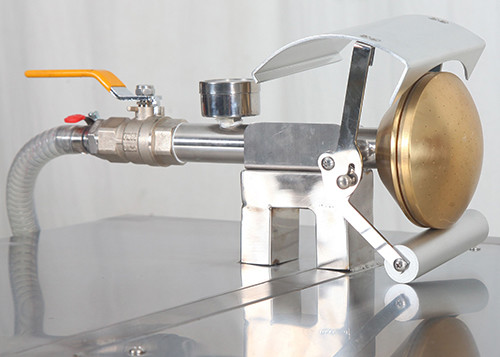

The SC-IPX34-SNE Spray Nozzle is a handfree test device to verify
protection against spraying and splashing water.
The water pressure can be adjusted using the flow control knob on
the device to give the required flow rate.
The pressure can be seen on the gauge which is conveniently
positioned by the nozzle.
The spray pattern of the nozzle is made to the specifications of
IEC 60529.
A moveable shield can be put down over a portion of the nozzle for
IPX3 or moved out of the spray pattern for IPX4
Product information:
The handfree spray nozzle is designed and manufactured in
accordance with IEC60529 clause IPX3 and IPX4.
The handfree Spray Nozzle is an alternative to the Oscillating Tube Tester for
establishing the degree of protection against ingress of water.
The handfree Spray Nozzle is intended for use on specimens that will not fit
within the diameter of the Tube Tester.
The primary IEC tests include IPX3 and IPX4 protection against
water spraying and splashing water.
Under this circumstance, the handfree spray nozzle apparatus is
used automatically.
Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653 IPX3 and IPX4
