CEE7 Plugs Socket Outlet Gauge C18a For Checking Impossibility Of Single - Pole Insertion Of Plugs

Ask Lasest Price
Brand Name :	SHC
Model Number :	SC-CEE7
Certification :	CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Price :	USD 50-2000 piece
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	999 pieces per month
Delivery Time :	in 15 work days

Add to Cart

Product Details
Company Profile

CEE7 Plugs Socket Outlet Gauge C18a For Checking Impossibility Of Single - Pole Insertion Of Plugs

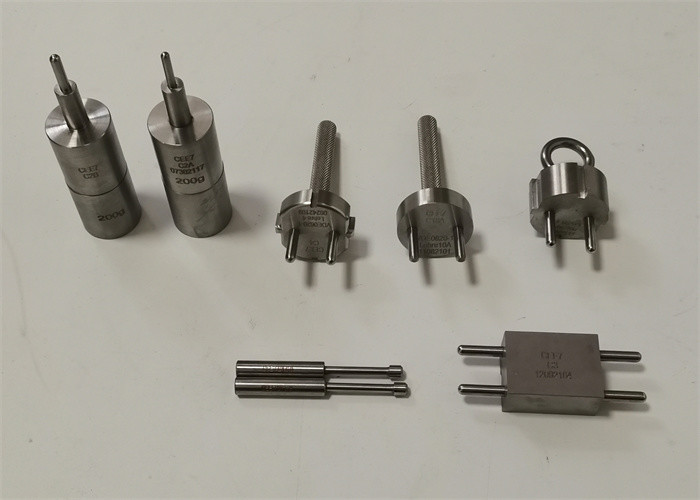

CEE7 Plugs Socket-Outlets Gauges c18a for checking impossibility of single-pole insertion of plugs

CEE7 Plugs Socket-outlets Gauges

No.	Figure No.	Description
1	CEE7/C1	10/16A 250V two-pole socket-outlets Gauges c1 for size of entry holes for plug pins
2	CEE7/C2A.B	10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauges c2 for minimum opening of contact tubes
3	CEE7/C3	10/16A 250V two-pole socket-outlets Gauge c3 for acceptance of two-pole plugs
4	CEE7/C4	10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge c4 for acceptance of two-pole plugs with side earthing contacts
5	CEE7/C6A.B	10/16A 250V two-pole fixed socket-outlets Gauges c6 for fixing holes or slots
6	CEE7/C7A.B.C.D	10/16A 250V two-pole socket-outlets Gauges c7 for distance to point of first contact
7	CEE7/C8	10/16A 250V two-pole socket-outlets Gauge c8 for wiring channel
8	CEE7/C9A.B	2.5A 250V and 10/16A250V two-pole plugs and 10/16A 250V two-pole socket-outlets with pin-type earthing-contact Gauges c9 for pin diameter
9	CEE7/C10A.B	10/16A 250Vtwo-pole plugs Gauges c10 for pin spacing
10	CEE7/C11	10/16A 250V two-pole socket-outlets and two-pole piugs with pin-type earthing-contact Gauge c11 for maximum opening of contact tubes
11	CEE7/C12	10/16A 250V two-pole plugs with side earthing-contacts Gauge c12 for interchangeability
12	CEE7/C13	2.5A 250V two-pole plugs for class ii appliances Gauge for interchangeability
13	CEE7/C14	10/16A 250V two-pole flush-type socket-outlets for screw fixing Gauge for dimensions of mounting boxes
14	CEE7/C15	10/16A 250V two-pole plugs without earthing contact Gauge for non-interchangeability with two-pole plugs with earthing contact
15	CEE7/C16	10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge for non-acceptance of two-pole plugs without earthing contact
16	CEE7/C18A	10/16A 250V two-pole socket-outlets without earthing contact Gauge c18a for checking impossibility of single-pole insertion of plugs
17	CEE7/C19A.B.C	2.5A 250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets
18	CEE7/C19a	2.5A 250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets

Product Tags:

CEE7 Plugs Socket Outlet Gauge

C18a Socket Outlet Gauge

250V Socket Outlet Gauge

CEE7 Plugs Socket Outlet Gauge C18a For Checking Impossibility Of Single - Pole Insertion Of Plugs
