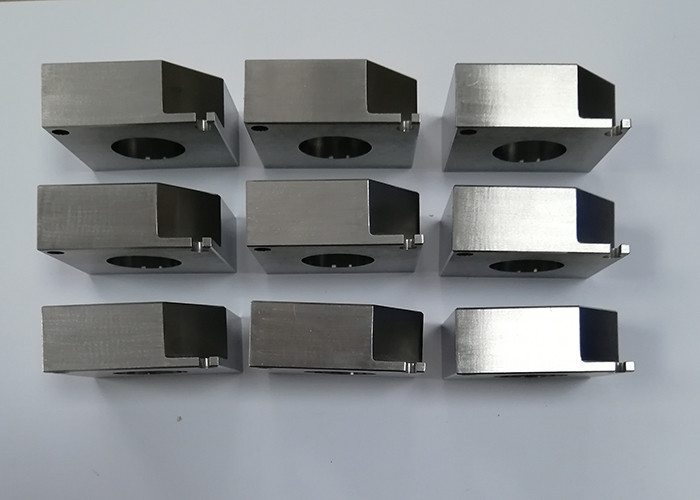

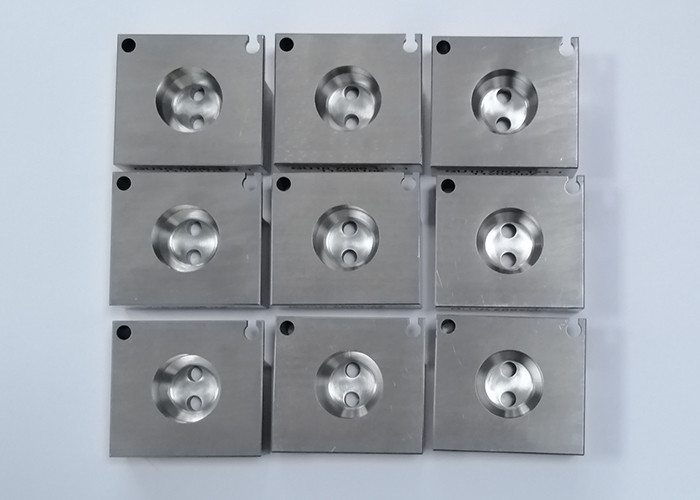

GO And NOT GO Gauge Gu10 7006-121-1 IEC60061-3 Lamp Cap Gauge

7006-121-1

GO and NOT GO gauge 7006-121-1

PURPOSE:To check the base GU10 in the following respects:

a) The diameter of the individual pins (dimension A);

b) The combined displacement and diameter of the pins (dimensions A and D);

c) The length of the pins (dimensions F1 plus J);

d) The recess length and diameter of the pins (dimensions F2 and E).

Testing ::a) It shall be possible to insert the individual pins of the base

from surface Z into the hole "a1" and remove the pin along the slot.

b) It shall not be possible to insert the pins of the base into hole "a2".

c) It shall be possible to insert the base into the gauge until the

reference plane of the base is in contact with surface Y of the gauge.

d) In this position, the ends of the pins shall not project beyond the

surface of the gauge.

Conforms To:

IEC60061-3 Gu10 7006-121-1

Application:

Guangzhou Shice Equipment offers a wide range of gauge to meet the most common standards

including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the

checking of size & definition etc. these gauges are constructed from senior stainless steel

and appropriate steel with a hardness of at least 60 HRC and a roughness according to

standard require. Each gauge is supplied with a certificate of calibration.
