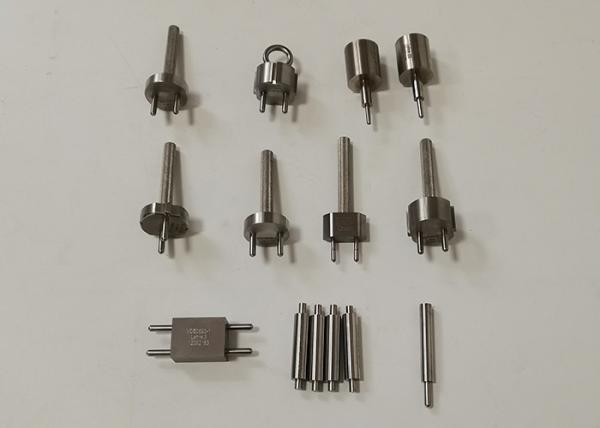

    DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges

    Ask Lasest Price
    Brand Name : SHC
    Model Number : SC-VDE-Lehre2345810111416a
    Certification : CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
    Price : USD 50-2000 piece
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 999 pieces per month
    Delivery Time : in 15 work days
    • Product Details
    • Company Profile

    DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges

    DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges


    Lehre 6 – Lehre für den Stiftdurchmesser


    Germany plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of VDE0620-1:2010.


    DIN-VDE0620-1-lehre2Minimum opening width and minimum pull out force of contact jack
    DIN-VDE0620-1-Lehre3Bipolar plug force
    DIN-VDE0620-1-Lehre4Bipolar plug with earthing contact insertion flanking force
    DIN-VDE0620-1-Lehre5To test the first time contact closure interval gauge
    DIN-VDE0620-1-Lehre6Pin diameter
    DIN-VDE0620-1-Lehre7Pin distance
    DIN-VDE0620-1-Lehre8The maximum opening width of the contact jack
    DIN-VDE0620-1-Lehre9Interchangeability test plug gauge
    DIN-VDE0620-1-Lehre10-AThe impossibility of the contact of the single pole contact hole A
    DIN-VDE0620-1-Lehre10-BUnipolar contact hole contacts not the possibility of B
    DIN-VDE0620-1-Lehre11No bipolar plug ground contact can not be inserted
    DIN-VDE0620-1-Lehre12The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack)
    DIN-VDE0620-1-Lehre13After normal operation test of live parts check protection inside the door can not touch the probe
    DIN-VDE0620-1-Lehre14On both sides of the ground test
    DIN-VDE0620-1-Lehre15Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe
    DIN-VDE0620-1Fig15Gauge
    DIN-VDE0620-1-Lehre16aThe maximum pullout force plug (16a)

    For more VDE 0620 Plug and socket outlets gauges, please feel free to contact us.
