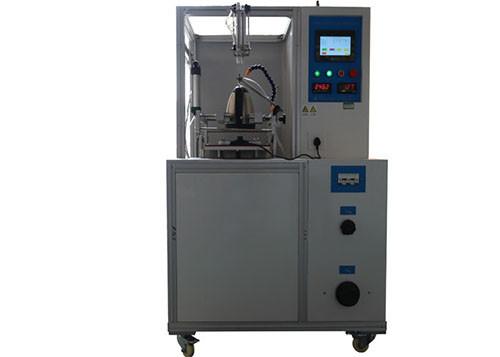

IEC60335 Kettle Insert Withdraw Endurance Test Device Life Span Tester

Product information:

The kettle insert-withdraw endurance test device is designed and manufactured according to the standard IEC60335 -2- 15 clause 22.103, which is used to test the cordless kettle plug life. The test times can be preset (up to 999,999 times), automatically record the number of tests and breakover times, it will automatic alarm when reach to the preset number of times or breakdown.

Model specifications and technical parameters:

Product feature:

1. This device is through PLC electric control system, adopt stepper motor drive lead screw positive and negative rotation to realize the reciprocating action of the manipulator.

2. The whole operations are touch screen, the parameters can be preset on the touch screen before testing, include the test times for the kettle insert-withdraw, conduction time, power-off time, test stroke, test speed etc.. Touch screen also equip with functions of manual adjustment and real-time location display, can be more accurate and effective to adjust the sample and the device degree of adaptability.

3. Multi-function fixture, it is suitable for different kettle test with adjustable height；

4. It can automatic switchover between load test and non-loaded test, it can also be tested independently, device equipped with load inside, the load test can be done when specimen is inserted into the device interface；

5. It can effectively complement the switch-off action on load test with complementary unit；

6. Using floor type structure, with casters can move freely, a rigid frame, good stable performance, seal plate treated by painting, sandblasted aluminum fixtures, beautiful and practical.

Maintenance And Precautions

1. Regular maintenance for the equipment, don't work in moister or having water condition, work in well ventilated areas.

2. Take away the sample and close the air source and water source and turn off the power if user no needs to continue any test after completing the test.

3. Do not touch the heating component of the kettle avoid scalding during testing.
