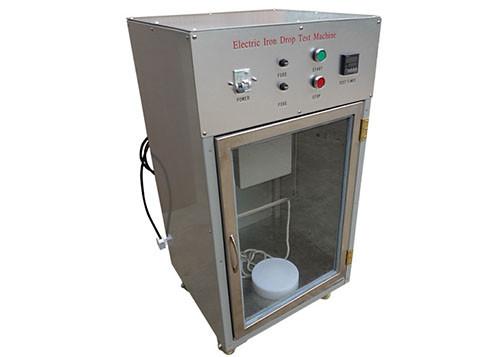

IEC60335-2-3 Electric Iron Drop Tester Electrical Appliance Tester

Technical parameters:

Product information:

To check the mechanical strength of electric irons by repeated drop onto a steel plate according to IEC60335-2-3 clause 21.101.
The electric iron is operated under normal operation at rated power input and, except for cordless irons; the soleplate temperature is maintained under these conditions throughout the test.

Standard Outfit:
1 steel plate, at least 15mm thick, mass at least 15 kg, rigidly supported,
1 lifting device with radial cam for a slow lifting of the specimen for 40 mm, for a sudden release for a free fall and for a rest time on the steel plate of ≈15% of the test duration,
1 gear motor, to drive the lifting device, for 20 drops per minute maximum,
1 falling assembly, with tie-bar for fastening the specimen, with 1 pair of distance pieces 40 mm.
1 switchgear, with main switch, fuses and preset counter to switch off the unit after the preset number of strokes.
