Creepage Distance Test Card Shortest Path of Two Conductive Parts

Technical parameters:

We have five kinds of Creepage Distances Test Cards, CK1/CK2/CK3/CK4/CK5.

These test gauges conforms to IEC60884-1, IEC60598, and IEC60335 etc.

They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Assortments:

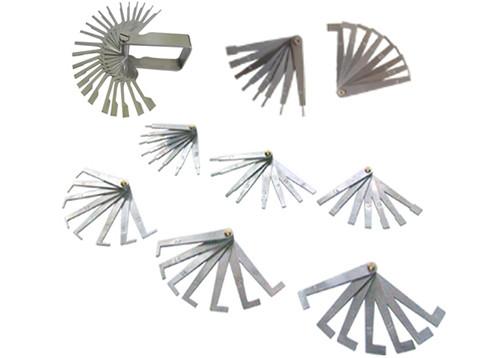

Creepage Distance Gauges Type CK1

With 8 creepage distance gauges:

1,0-1,5-2,0-2,5-3,0-4,0-6,0-8,0mm.

Creepage Distance Gauges Type CK2

With 15 creepage distance gauges:

1,0 to 8,0mm in steps of 0,5mm.

Creepage Distance Gauges Type CK3

With 21 creepage distance gauges:

1,0-1,2-1,4-1,5-2,0-2,4-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm

Creepage Distance Gauges Type CK4

With 23 creepage distance gauges:

1,0-1,2-1,4-1,5-1,6-2,0-2,4-2,5-2,8-3,0-3,2-3,3-3,5-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm

Creepage Distance Gauges Type CK5

With 27 creepage distance gauges:

1,0-1,1-1,2-1,3-1,4-1,5-1,6-1,7-1,8-1,9-2,0-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5.5-6,0-6,3-6,5-7,0-8,0-9,0-10,0mm

Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 27.1.

Creepage distances, clearances and distances through sealing compound shall be not less than the values shown in table 23.

Test sample:

Electrical conductive parts.

Feature:

Stainless steel, pawn type, to verify the creepage distance between conductive components

Application:

It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Notice

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
