IEC60068 Pendulum Hammer Impact Test Apparatus For Drop Impact Resistance

Product details:

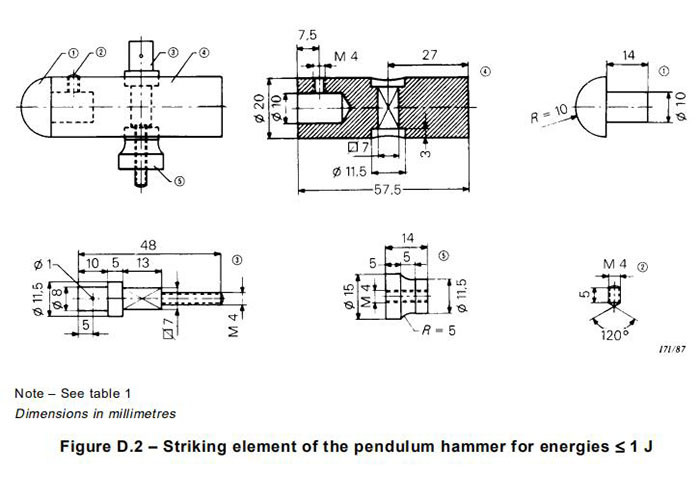

The pendulum impact test device is made according to the requirements of the Eh hammer test of the test method of the environmental test of the electrical and electronic products of IEC60068-2-75. The test device is mainly oscillated by the upper end around its swing axis in a vertical plane. The pendulum is composed. The axis of the pendulum axis is 1000 mm above the measuring point. The pendulum consists of a rigid pendulum shaft and a matching impact element. Test specimens that are heavier, bulky, or difficult to handle can be tested using a hand-held pendulum. The device is mainly used for mechanical strength testing of electrical accessories such as plugs, sockets and switches for household and similar purposes. The device is generally fixed vertically on a solid wall, and the mounting bracket can be adjusted front and rear, and the impact angle is adjustable.

Parameters:

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.

Our main products are:

waterproof and dustproof (IP) environmental test equipment;

switch, plug, socket and coupler test equipment; mechanical strength impact test equipment;

material fire hazard test equipment, enclosure protection test probes;

household appliances safety test equipment;

wire and cable test equipment;

luminaires test equipment;

electric tools test equipment.

Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
